Vitracore G2 Engineered Aluminium Cladding Panels

Material

Engineered aluminium panel.

Finish

The highly recognised PVDF or FEVE Paint System known for its high durability, providing the optimum resistance to weather and industrial pollution.

Fixing System

A cassette style concealed fixing system which is the same to fabricate and install as traditional ACPs.

Warranty

15-year warranty, subject to standard terms and conditions.

Application

Type A, B and C constructions where non-combustible materials are required, such as mixed-use developments, residential construction, and large-scale government infrastructure projects like hospitals.

Vitracore G2 is an engineered panel designed for high performance as a façade material, which is half the weight, 5 times more rigid, and has 70% greater resistance to oil canning than its solid panel counterparts. It’s the ideal façade product for all types of construction from residential developments to large-scale government infrastructure projects.

The lightweight nature of the panels aids the installation procedure and efficacy, reducing overall construction cost.

Providing an almost unlimited range of colours and finishes, Vitracore G2 is the ideal solution to high-demand industry requirements for innovative and functional façade demands.

Contact us today for more information or prices on our non-combustible aluminium cladding options or request a sample online now.

Vitracore G2 Key Benefits

Deemed Non-Combustible
Meets National Construction Code criteria for non-combustible façade applications.
CodeMark Certified
Independently certified to demonstrate compliance with the Building Code of Australia.
Tested to AS1530.1 & AS1530.3
Fire tested to Australian Standards for material combustibility and fire hazard properties.
Tested to BS8414 and BR135
Successfully assessed through full-scale façade fire testing for real-world performance.
Weatherproofed to NCC Clause F3P1
Designed and tested to meet NCC requirements for façade weather resistance.
Design flexibility
Available in a wide range of colours and finishes to suit varied architectural intent.
Concealed fixing
Cassette-style concealed fixing system provides a clean, seamless façade finish.
Lightweight and easy to install
Approximately half the weight of solid aluminium for easier handling and faster installation.
Visually the same as traditional ACP
Delivers the familiar ACP appearance with a non-combustible engineered core.
Highly effective for infrastructure projects
Proven performance across large-scale and high-use public buildings.
Cost Effective
Large stock holdings, lightweight panels and efficient installation support overall project cost control.
Resistant to corrosion
Aluminium construction and durable coatings deliver long-term environmental resistance.

Vitracore G2 Facade System

Vitracore G2 is offered as a fully integrated cladding system that has been rigorously tested and is CodeMark certified as a tested system. Fairview offers a comprehensive range of sub-framing components designed to seamlessly integrate with the Vitracore G2 cladding system, ensuring full compliance with building codes and the rigorous testing that Vitracore G2 has undergone. These sub-framing components are engineered to support the structural integrity of the cladding while providing a reliable foundation that enhances the overall performance of the system. Calculate the accessories required for your project here.
  • Vitrafix Z-Angle

  • ROCKWOOL Rainscreen Insulation

  • Vitrafix Wall Sarking

  • Vitrafix Ventilated Top Hat

  • Backing Rod

  • Caulking

  • Vitracore G2 Panel

Vitracore_G2_Cool_Grey
Vitrafix Z-Angle
ROCKWOOL Rainscreen Insulation
Vitrafix Wall Sarking
Vitrafix Ventilated Top Hat
Backing Rod
Caulking
Vitracore G2 Panel

Documents & Downloads



  • Vitracore G2 Wall Animation Watch
  • Vitracore G2 Product Information PDF | Download

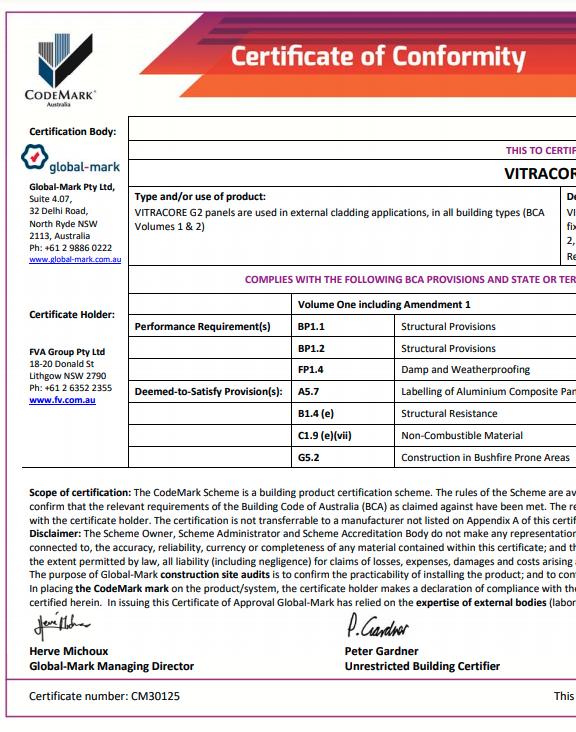

  • Vitracore G2 CodeMark Certificate PDF | Download
  • Vitracore G2 Colour Chart PDF | Download

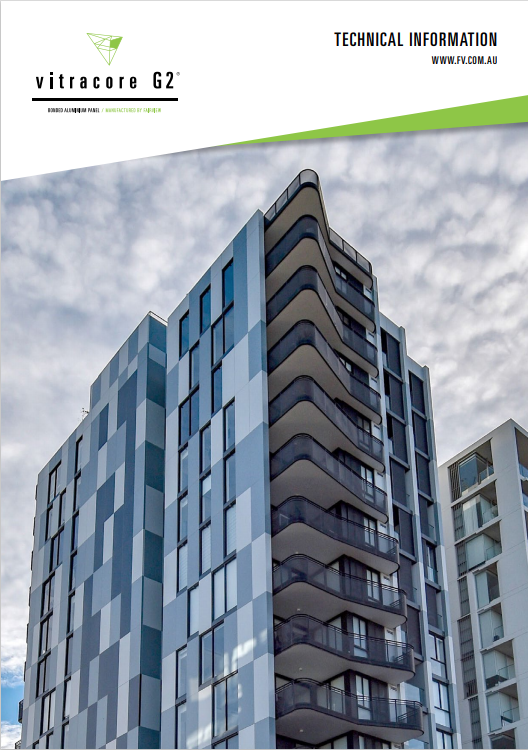

  • Vitracore G2 Technical Manual PDF | Download

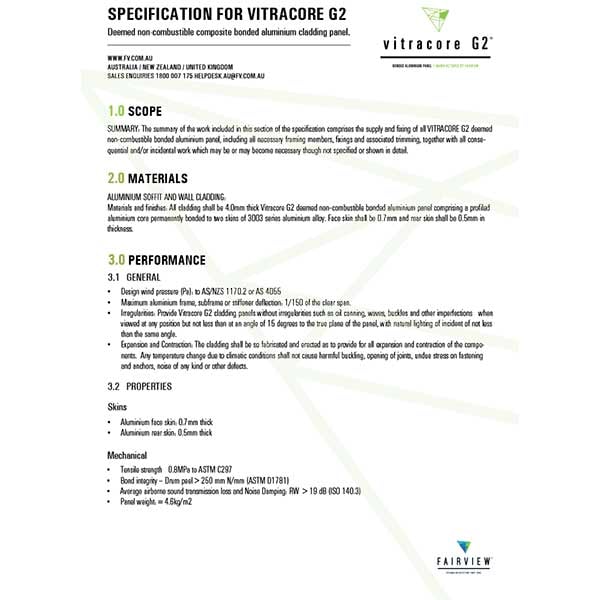

  • Vitracore G2 Specification Sheet JPEG | Download
  • Vitrafix Facade System Accessories PDF | Download
  • Fairview Product Guide PDF | Download
  • BIM / REVIT File View
