Smartbric Brick Slip Cladding System

Material

Brick Slip Cladding System.

Finish

Natural brick facings available in a range of local, extruded and concrete finishes.

Fixing System

Fixed gauge profiled steel Track or variable gauge profile aluminium Rail framing system.

Warranty

10-year warranty, subject to standard terms and conditions.

Application

Type A, B and C construction where non-combustible materials or brick appearance are required such as mixed-use developments, residential construction,
commercial and shopfitting projects.

Smartbric is a ventilated rainscreen brick cladding system that delivers a high-quality, durable brick facade when traditional bricklaying is not viable due to weight and limited space.

Smartbric brick slips are available in two profiles:

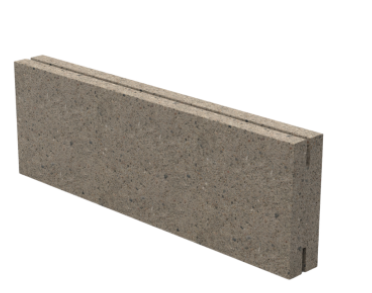

  • Smartbric Classic 25mm – mortared brick look for traditional facades, with slots and grooves for easy installation into metal tracks or rails.

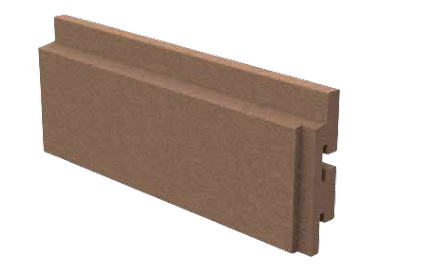

  • Smartbric Rapid 25mm – interlocking, mortarless bricks with a shadow groove for fast, efficient installation and easy replacement without damaging the facade.

The Track or Rail framing system allows installation horizontally, vertically or at an angle, supporting mix-and-match layouts with Classic or Rapid profiles. Ideal for interior or exterior use, restoration projects and commercial buildings, Smartbric comes in a wide range of colours for modern brick facades and heritage-style designs.

Smartbric Key Benefits

Natural and energy efficient
The ventilated rainscreen design improves thermal performance, promoting airflow behind the facade and helping reduce building energy use.
NCC compliant
Made from non‑combustible materials and engineered to meet current NCC structural, weatherproofing and performance requirements.
Non-combustible
Constructed from non‑combustible brick facings for enhanced safety in external facade applications.
Weather resistant
The secure Track or Rail installation system combined with rainscreen ventilation protects against moisture ingress and weathering.
Universal fixing system
The Smartbric Track and Rail framing systems support a mix-and-match approach allowing installation horizontally, vertically or at angles.
Exceptional durability and strength
Smartbric brick slips lock securely in place and offer exceptional strength and robustness.
Quick and easy installation
The Rapid mortarless profiles install efficiently, reducing labour time and cost versus traditional brickwork.
Suitable for varied spaces
Smartbric works well in constrained areas and across project types including heritage, retrofit and contemporary designs.
Architectural appeal
Delivers the authentic look of brick with a choice of Classic mortared or clean, shadow‑groove Rapid finishes.
Low maintenance
The rainscreen brick facade requires minimal upkeep compared with traditional masonry walls.

Smartbric Rail

  • ROCKWOOL Rainscreen Insulation

  • Vitrafix Wall Sarking

  • Vitrafix Top Hat

  • Smartbric Rail

  • Smartbric Classic Brick

  • Smartbric Pointing

Installation system diagram of the Smartbric brick facade, showing rail option
1
ROCKWOOL Rainscreen Insulation
2
Vitrafix Wall Sarking
3
Vitrafix Top Hat
4
Smartbric Rail
5
Smartbric Classic Brick
6
Smartbric Pointing

Smartbric Track

  • ROCKWOOL Rainscreen Insulation

  • Vitrafix Wall Sarking

  • Vitrafix Top Hat

  • Smartbric Track

  • Smartbric Classic Brick

Smartbric_Rapid-H_Rail_Mountain_Ash
1
ROCKWOOL Rainscreen Insulation
2
Vitrafix Wall Sarking
3
Vitrafix Top Hat
4
Smartbric Track
5
Smartbric Rapid Brick
6
Smartbric Pointing

Smartbric Projects

Documents & Downloads

  • Installation Method Video Watch
  • Smartbric Product Information PDF | Download
  • Smartbric Colour Chart PDF | Download
  • Smartbric Installation Manual PDF | Download
  • Smartbric Technical Data Sheet PDF | Download
  • Smartbric Specification Sheet PDF | Download
  • Vitrafix Facade System Accessories PDF | Download
  • Fairview Product Guide PDF | Download
  • BIM/REVIT File View
