Australia’s climate presents unique challenges for building performance, including intense UV radiation, high humidity, coastal exposure and unpredictable rainfall. As our cities evolve, architectural design is becoming more ambitious, with increasing complexity at greater heights. Passive ventilation is a key contributor to sustainability, energy-efficient facades, and occupant wellbeing, playing a critical role in future-proofing buildings and reducing long-term costs.
Fairview’s façade systems, paired with our industry-leading
Vitrafix ventilated top hats, are designed to optimise airflow, support healthier wall cavities and encourage smarter construction practices.
What is Passive Ventilation in Façades?
Passive ventilation is the natural movement of air through a building’s envelope, driven by its design and the surrounding environment. In façade systems, this airflow occurs within the cavity between the external cladding and internal wall structure.
A well-ventilated façade helps regulate heat and moisture, reducing thermal stress and preventing condensation. This extends the lifespan of the cladding, improves energy efficiency and enhances occupant comfort.
Benefits of Passive Ventilation
Moisture Management
Moisture is a persistent threat to building performance, especially in humid or coastal climates.
Rainscreen systems form a multi-layer defence: the outer cladding deflects rain, while the ventilated cavity allows residual moisture to evaporate or drain. This reduces risks such as mould, rot, and interstitial condensation.
Thermal Efficiency
Airflow within the cavity helps disperse heat before it reaches the internal wall, stabilising temperatures and reducing reliance on mechanical systems. External insulation further supports passive heating and minimises air leakage.
Durability
A dry, balanced cavity protects fasteners and framing from corrosion and reduces thermal stress, helping prevent panel distortion and movement over time.
Health and Comfort
Naturally ventilated buildings regulate internal temperatures and inhibit the growth of mould and bacteria, supporting healthier indoor environments.
How Passive Ventilation Works in Rainscreen Systems
Fairview’s rainscreen cladding systems manage moisture and heat through strategic cavity ventilation. When wind-driven rain hits the façade, most moisture is deflected by the cladding. Any water that penetrates is managed within the ventilated cavity, where airflow promotes drying and drainage.

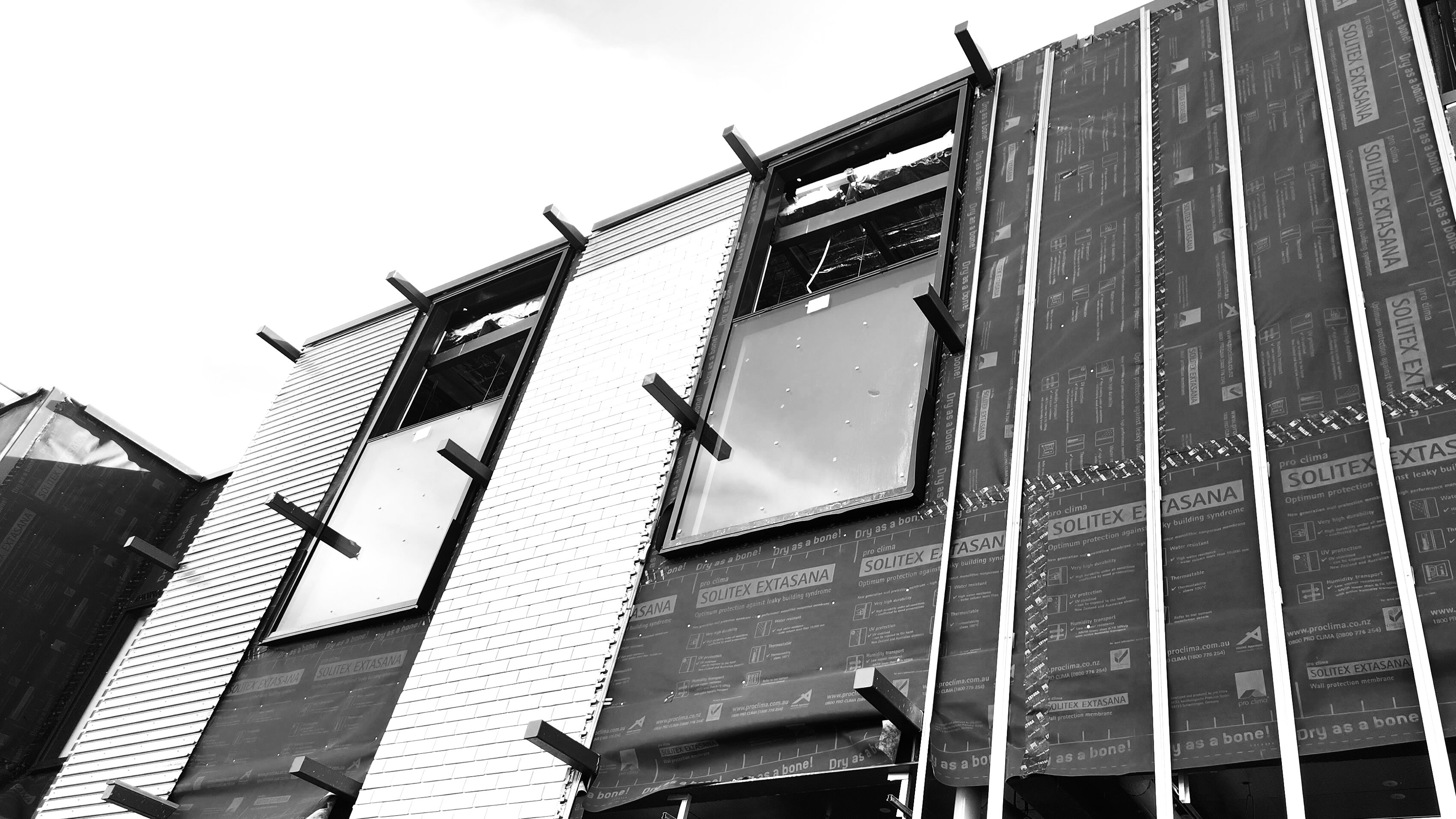

The rainscreen façade envelope typically includes:
-
- Cladding panels
- Subframing
- Membrane
- Insulation

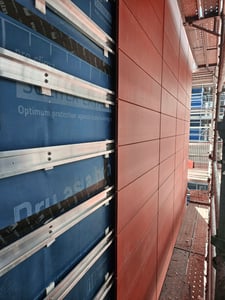

Elevating the panels off the wall with Vitrafix top hats creates a ventilated cavity, the powerhouse of the wall system. Cooler air enters at the base, warms and rises, pushing moisture-laden air out through the top. This convection cycle regulates wall temperature and supports evaporative drying.

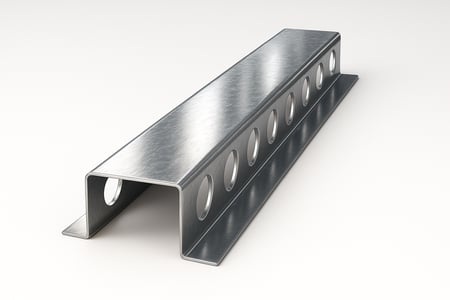

Spotlight: Fairview’s Vitrafix Ventilated Top Hat
A standout feature of Fairview’s ventilated façade systems is the
Vitrafix ventilated top hat, a subframing component engineered to enhance airflow and cavity health.
Unlike traditional solid top hats, ventilated top hats feature precision-engineered perforations that enable multidirectional airflow. This allows air to move vertically and laterally across the cavity, supporting a more balanced, breathable wall system.
Key Benefits of ventilated top hats:
-
Improved Evaporative Drying
Promotes faster moisture evaporation within the cavity, reducing the risk of condensation and mould.
-
Reduced Thermal Stress
Helps dissipate heat before it reaches the internal wall structure, minimising panel distortion and out-of-plane movement.
-
Enhanced Durability
Supports long-term façade integrity by protecting structural components from moisture-related damage.
-
Horizontal Application Ready
Maintains ventilation performance where traditional top hats typically fail, making it suitable for complex façade designs.
-
Code-Compliant Design
Engineered to meet NCC requirements for energy efficiency and moisture management, ensuring peace of mind for specifiers and builders.
Vitrafix ventilated top hats are a first-to-market solution that actively supports the performance of the entire façade system. Whether used in new builds or retrofit projects, it offers a more innovative, more resilient approach to cavity ventilation.
Passive Ventilation in Practice
Fairview’s rainscreen approach works across a wide range of cladding options from natural finishes to high-performance metals. This flexibility allows architects and builders to achieve both technical performance and design intent.
Smartbric
Brick façades are prone to moisture retention, especially in mortar joints. Smartbric’s mortarless format allows air to circulate behind the brick face, helping evaporate residual moisture and prevent mould or frost damage in colder climates.

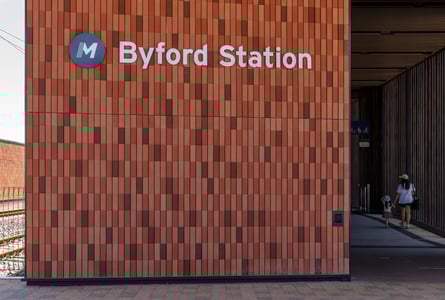

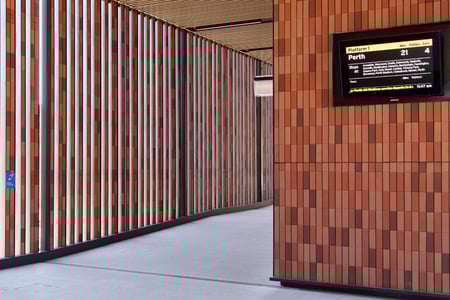

Byford Railway Station, WA
Clayton

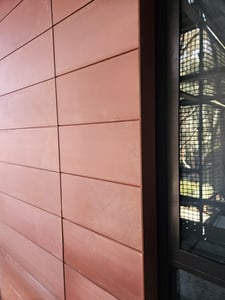

Terracotta is naturally porous, which means it can absorb moisture over time. A ventilated cavity behind Clayton panels allows trapped water vapour to escape, reducing the risk of staining, spalling and long-term degradation.
Goodwin Downer, ACT - Under Construction

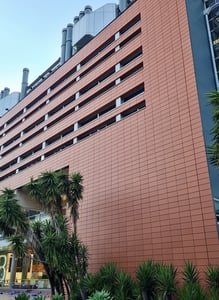

UNSW, NSW
Genesis
Large-format fibre cement panels like
Genesis can experience thermal expansion and contraction. Passive ventilation helps stabilise wall temperatures, reducing stress on fixings and minimising façade movement.
Stryum
Aluminium façades are highly conductive and can trap heat when airflow is restricted. The ventilated cavity behind Stryum panels helps dissipate heat, reducing thermal stress and supporting dimensional stability across its interlocking profiles.

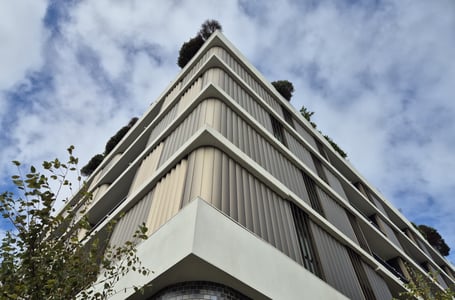

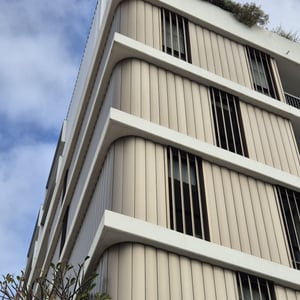

Casa Residencies, Erskineville NSW
Vitracore G2
Aluminium composite panels can trap heat if not properly ventilated. The cavity behind Vitracore G2 allows warm air to escape, improving thermal performance and reducing reliance on mechanical cooling systems.

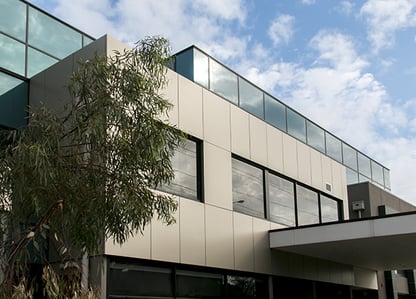

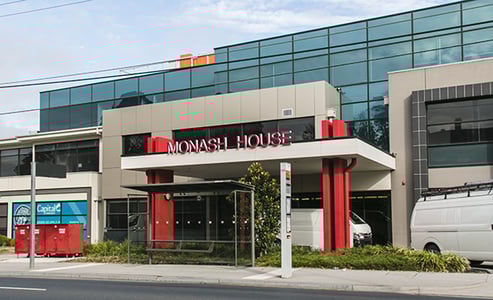

Monash House Private Hospital, Clayton VIC
Vitradual
Solid aluminium panels expand and contract with temperature fluctuations. Passive ventilation allows Vitradual to regulate these changes by maintaining a stable cavity environment, reducing the likelihood of oil canning, buckling or out-of-plane movement.

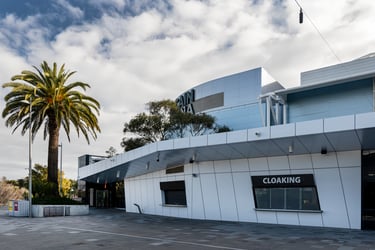

John Cain Arena, Melbourne VIC
Design Considerations, Best Practice & Compliance
When installing a rainscreen façade system, it’s essential that cavity openings at the top and bottom do not sit flush with the base or top structures. Improper detailing can create pressure build-up and lead to water ingress or damage. To support airflow and maintain a clean, streamlined finish, Fairview supplies Vitrafix accessories that integrate seamlessly without visually impacting the façade. All rainscreen installations should be guided by site-specific factors, such as wind direction and climate. Always refer to the supplier’s installation manuals for best practice.
Fairview’s rainscreen systems support compliance with key Australian standards and codes, including:
- NCC Section J: Energy efficiency provisions
- AS/NZS 4200.1: Vapour permeable sarking
- AS/NZS 4859.1: Thermal insulation performance
- AS 3959: Bushfire-prone area construction (ventilation balanced with ember protection)
At Fairview, our team is available to assist from design through to completion to help ensure your system performs as intended.
